Custom Copper Hood with Insert

A custom copper hood with insert should be planned as two connected parts: the handmade copper shell that defines the kitchen style and the ventilation insert that provides airflow, lighting, filters, controls, and service access. The copper exterior creates the architectural focal point above the range, while the insert determines how cooking air is captured, filtered, recirculated, or exhausted outdoors. At MyCustomCopper, the custom copper range hoods collection includes wall-mount, island, and under-cabinet designs in hammered or smooth copper, with 30, 36, 48, and 60 inch widths plus fully custom sizing. Before production, the hood size, insert model, duct route, service access, patina, mount type, and kitchen clearances should be reviewed together.

Post Summary

• Understand hood insert basics
• Plan shell and insert together
• Confirm duct and cutout specs
• Choose wall or island mount
• Keep service access open

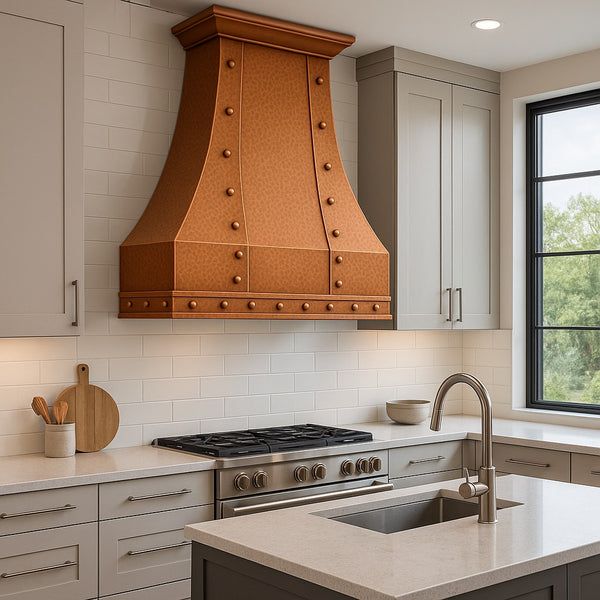

This lifestyle image shows a hammered copper hood above a working range. The copper shell creates the visible Spanish Revival focal point, while the insert planning must happen inside the hood before the kitchen is completed.

What Is a Custom Copper Hood with Insert?

A custom copper hood with insert is a handmade metal range hood shell prepared to receive ventilation equipment inside.

The shell gives the kitchen its visible copper form, patina, texture, apron, chimney, straps, rivets, and decorative profile. The insert supplies the mechanical function.

Copper Shell vs Ventilation Insert

The copper hood shell is the exterior housing. It is the part homeowners see above the range.

The insert is the appliance installed inside the hood. It may include a fan, blower, lights, grease filters, controls, electrical parts, and duct connection.

Why the Insert Matters

A copper hood can be visually beautiful, but it still needs compatible ventilation equipment to function correctly.

The insert affects airflow, noise, lighting, filter access, service access, discharge direction, duct diameter, and how the installer connects the hood to the kitchen ventilation system.

Design and Function Must Match

The hood cannot be planned by exterior dimensions alone. The interior opening must work with the insert body, cutout, controls, filters, lights, duct transition, wiring, and removable parts.

That is why insert specifications should be reviewed before production, not after the copper shell is finished.

Included 200 CFM Insert Option

A standard economy 200 CFM insert may be included with many custom copper hood configurations.

This option can support basic residential ventilation needs where the cooking equipment, duct path, kitchen size, and local requirements are appropriate for a lighter insert.

When 200 CFM May Be Enough

The 200 CFM insert is best treated as an economy option for lighter cooking conditions.

For stronger cooking appliances, frequent high-heat cooking, longer duct runs, larger ranges, or professional-style kitchens, the buyer should review a stronger compatible insert with a local ventilation professional.

Why Stronger Inserts Are Buyer-Supplied

Stronger insert options are not sold as standard upgrades because every kitchen has different cooking equipment, duct routing, code requirements, airflow needs, and service conditions.

A stronger system should be selected around the actual kitchen, not by guessing from hood appearance alone.

Buyer-Supplied Internal Inserts

The copper hood shell can be prepared for a buyer-supplied internal insert up to 1200 CFM when compatible specifications are provided before production.

This allows the buyer, builder, appliance supplier, or ventilation professional to select a unit that matches the cooking appliance and duct plan.

Buyer-Supplied External Systems

The hood can also be prepared for a buyer-supplied external blower system up to 1500 CFM when the required specifications are provided and approved.

External blower systems require especially careful review because the blower, duct path, transition, controls, wiring, and service access may differ from standard internal inserts.

Interior Preparation Before Production

Interior preparation can be included when full ventilation specifications are reviewed and approved before fabrication.

This preparation helps the handmade copper shell receive the selected insert more cleanly, instead of requiring field modification after delivery.

What Interior Preparation Can Include

Interior preparation may involve planning the opening, support surfaces, liner fit, insert placement, duct transition, electrical access, filter clearance, and service access.

The goal is to make the copper hood compatible with the selected system while preserving the exterior design.

Insert Specifications to Provide

Before production, provide the insert manufacturer, model number, complete specification sheet, installation manual, overall dimensions, cutout dimensions, duct diameter, duct discharge location, electrical requirements, lighting position, controls, filter access, and service clearances.

Photos, cabinet drawings, range specifications, marked measurements, and kitchen elevations can also help confirm fit.

Do Not Send Only the Insert Width

Insert width alone is not enough. Two inserts with the same width can have different depth, cutout, duct position, controls, filter access, and mounting needs.

A full PDF manual or technical drawing is the safest way to confirm compatibility.

Insert Size and Hood Size

The insert must be smaller than the hood shell so it can fit inside the copper structure with proper support and service access.

As a general guideline, the ventilation insert should be approximately six inches smaller than the hood in width and depth, subject to technical review.

Why Extra Space Matters

Extra space allows for interior structure, copper returns, liner support, fasteners, duct transitions, filters, lighting, wiring, and installation tolerances.

A tight insert can create field problems, especially if filters or controls cannot be removed after the hood is mounted.

Wall-Mount Copper Hoods with Inserts

A wall-mount copper hood is installed against the cooking wall and usually frames the backsplash and range below.

Insert planning for wall hoods must account for rear wall support, duct route, backsplash thickness, cabinet spacing, electrical access, and whether discharge exits through the top or rear.

Wall-Mount Design Example

The Spanish Revival Hammered Copper Kitchen Range Hood is available in 30, 36, 48, or 60 inch widths and 24, 36, 48, or 60 inch heights, with natural or coffee patina and wall or island construction.

Its bell-shaped body, hand-hammered surface, crown molding, and apron band should be planned with insert access before the hood is built.

Island Copper Hoods with Inserts

An island copper hood hangs above an island cooktop or range and is visible from several directions.

Because there is no rear wall, island hoods require finished sides, strong ceiling support, centered chimney alignment, duct planning, and secure access to the insert and filters.

Ceiling and Service Planning

Island installation should be reviewed with ceiling framing, finished height, duct centerline, chimney dimensions, electrical access, and the weight of the hood plus insert.

The hood must look balanced from the kitchen, dining area, and adjacent open rooms.

Under-Cabinet Copper Hoods with Inserts

An under-cabinet copper hood can work when the kitchen has upper cabinets above the cooking surface.

This type of installation usually has less vertical space, so the insert, controls, lights, filters, and duct transition must be planned carefully.

Compact Insert Access

Under-cabinet layouts should not hide the insert behind fixed cabinetry without service access.

Filters, lights, controls, screws, wiring, and removable parts must remain accessible after installation.

This lifestyle image shows a smooth Mexican Hacienda copper hood. The simple copper body lets the patina and shape lead the design, but the insert still needs complete interior planning before production.

Ducted Insert Systems

A ducted insert sends cooking air outdoors through ductwork. This is often preferred when the kitchen can support a practical duct route and proper termination.

Ducted performance depends on insert strength, blower location, duct diameter, duct length, elbows, transition shape, termination, makeup air, and installation quality.

Duct Route Requirements

The duct route should be planned before the hood is fabricated. The discharge direction, duct centerline, chimney path, ceiling route, and wall route can affect the hood’s interior preparation.

A straight, efficient duct path usually supports better airflow than a long route with multiple elbows.

Ductless and Recirculating Inserts

A ductless or recirculating insert filters air and returns it to the kitchen when exterior ducting is not available.

This option requires a compatible recirculating kit, proper filter access, and a hood design that allows air to return to the room correctly.

When Recirculation Is Useful

Recirculating systems may be useful in apartments, remodels, interior kitchens, or buildings where exterior ducting is not practical.

For more detail, the article on the ductless copper range hood option explains how ductless configurations can be planned when outdoor exhaust is not possible.

Internal Blower vs External Blower

An internal blower sits inside the insert or hood assembly. An external blower is located outside the hood, often in an attic, roof, exterior wall, or remote ventilation location.

Both can work, but they have different requirements for ducting, controls, wiring, service access, noise, and installation.

External Systems Need Extra Review

External systems up to 1500 CFM can be considered when the buyer supplies compatible specifications before production.

The copper hood must be prepared around the insert or liner that connects to that external system, not only the remote blower rating.

Choosing CFM for a Copper Hood

CFM selection should be based on the cooking appliance, cooking style, fuel type, duct route, insert manufacturer guidance, kitchen size, and local code requirements.

A light-use kitchen may need less airflow than a high-heat kitchen with a professional-style range.

Local Review Is Important

Builders, appliance dealers, HVAC professionals, and local building departments can help confirm whether the selected ventilation system is suitable.

Makeup air, fire safety, duct size, and appliance requirements may apply depending on the project.

Mounting Height and Performance

Hood height above the cooking surface affects comfort and capture. If the hood is mounted too low, it can block sightlines or create head clearance problems.

If it is mounted too high, it may not capture smoke, steam, grease, and odors as effectively.

Use Project-Specific Clearance

The collection guidance recommends mounting custom copper range hoods about 30 to 36 inches above the cooking surface for optimal performance.

The final clearance should also respect the range manufacturer’s instructions, insert requirements, code conditions, ceiling height, and user comfort.

Hood Width and Capture Area

A custom copper hood should usually be at least as wide as the cooking surface. When possible, adding 3 to 6 inches can improve capture and visual proportion.

Width should be reviewed with range size, cabinet spacing, insert size, backsplash width, and overall wall composition.

Common Width Options

Many copper hood models are offered in 30, 36, 48, and 60 inch widths, with fully custom sizing available for larger appliances or unusual cabinet layouts.

The correct width should support both ventilation performance and the intended kitchen design.

Hood Depth and Insert Depth

Depth is just as important as width. A hood that is too shallow may not cover the cooking surface properly.

A hood that is too deep may project awkwardly into the room or interfere with cabinets, walkways, and sightlines.

Depth Review Before Production

Provide the insert depth, cutout depth, filter access direction, lighting position, and duct discharge location before finalizing the hood.

This helps confirm whether the hood should use standard depth or a custom depth for the chosen ventilation equipment.

Chimney and Duct Location

The chimney is not only decorative. It can conceal ductwork, electrical paths, and the transition from the insert to the ceiling or wall.

A tall kitchen may require a chimney extension to reach the ceiling or align with upper architectural features.

Top or Rear Discharge

Some inserts discharge upward. Others may allow rear discharge depending on model.

The copper hood must be prepared for the actual discharge direction, not the assumed one. Confirm top, rear, duct diameter, and centerline measurements.

Liner and Chassis Planning

Some insert systems use a separate liner. Others install directly into a prepared opening or chassis.

The original post explains that the hood can be customized by using a supplier liner or by building interior support to accommodate the exhaust system.

Why Custom Interior Support Helps

A custom interior support can fill the visible underside area around the insert with matching metal and provide a cleaner appearance.

It can also help the insert sit more intentionally inside the handmade copper shell when specifications are approved before fabrication.

Service Access Requirements

Service access is one of the most important planning details for a custom copper hood with insert.

The installer and homeowner must be able to remove filters, change lights, reach controls, access screws, inspect wiring, and service removable parts.

Do Not Seal the Insert Permanently

A hood that looks finished but traps the insert inside can become difficult to maintain.

Before production, review exactly how filters, lights, and removable components will be accessed after installation.

Electrical Planning

The insert may require electrical power for fans, lights, controls, remote blowers, or recirculating features.

Electrical access should be coordinated before the hood is installed, especially for island hoods, tall chimneys, or built-in cabinet conditions.

Coordinate with the Installer

A qualified professional should review wiring location, junction access, control placement, lighting service, blower controls, and any code requirements.

The copper shell should never be treated as a substitute for proper electrical planning.

Spanish Revival Hood with Insert

A Spanish Revival copper hood often includes a bell body, flared canopy, crown molding, apron band, and hand-hammered surface.

These details create visual depth, but they also affect how the insert sits inside the lower opening.

Decorative Profile and Technical Fit

The apron band can frame the ventilation opening and help hide the transition between the decorative shell and mechanical equipment.

Before approving a decorative hood, confirm that the selected insert can still be installed, filtered, wired, and serviced.

Hacienda Smooth Hood with Insert

A smooth Hacienda copper hood places more emphasis on shape, proportion, and patina rather than heavy texture or rivets.

The Mexican Hacienda Style Smooth Copper Range Hood is available in widths of 30, 36, 48, or 60 inches and heights of 24, 36, 48, or 60 inches, with natural, antique, or coffee patina and wall or island construction.

Smoother Shell, Same Insert Needs

A simpler exterior does not remove the need for careful insert planning.

Even a minimalist copper shell must be reviewed for interior opening, duct centerline, electrical access, and filter removal.

Modern Tapered Copper Hood with Insert

A modern tapered hood uses cleaner geometry, making insert fit especially important because the body narrows toward the top.

The Modern Tapered Copper Range Hood with Smooth Patina Finish has a trapezoid silhouette, smooth semi-matte surface, medium brown patina, darker marbling, and clean architectural lines.

Geometry and Internal Clearance

Because tapered forms reduce interior volume as they rise, insert dimensions, duct transition, and discharge location should be checked early.

This protects both the modern exterior shape and the ventilation function.

This lifestyle image shows a modern tapered copper hood in a transitional kitchen. The clean silhouette makes insert compatibility, duct location, and service access especially important before production.

Using a Customer’s Preferred Insert Brand

A buyer may use a preferred insert brand when the model is compatible with the hood dimensions and interior preparation.

The safest process is to choose the insert first, send the full specifications, and then build the copper hood shell around confirmed requirements.

Brand Flexibility with Technical Limits

Many insert brands can be accommodated, but not every insert shape, depth, duct position, or service layout will work inside every hood style.

Compatibility must be reviewed before production to avoid costly field adjustments.

Commercial and High-Performance Kitchens

Commercial kitchens, restaurant projects, and very high-performance home kitchens need additional ventilation review.

They may require stronger blowers, larger ducting, fire suppression, stainless liners, makeup air, code review, and specialized mechanical design.

Professional Review Is Required

For commercial or code-sensitive projects, the copper hood shell should be coordinated with the ventilation engineer, contractor, appliance supplier, and local authority.

The decorative copper shell does not replace the need for compliant mechanical ventilation equipment.

Coordinating the Hood with Kitchen Style

Once insert compatibility is confirmed, the hood can be designed around the kitchen’s style.

Hammered copper suits Spanish Revival, Hacienda, Tuscan, Mediterranean, farmhouse, lodge, and rustic kitchens. Smooth copper works well in transitional, contemporary, and modern rustic spaces.

Patina and Insert Planning Together

Patina selection affects the visible finish, while insert planning affects the working interior.

Both decisions should be made before production so the hood arrives with the right exterior character and the correct interior preparation.

Backsplash and Cabinet Coordination

The hood, backsplash, cabinets, range, and insert must be planned as one composition.

Copper pairs well with handmade tile, Talavera tile, plaster, brick, stone slab, marble, limestone, concrete-look surfaces, wood cabinets, cream cabinets, black hardware, bronze fixtures, and iron lighting.

Do Not Let the Insert Control the Entire Look

The insert should fit correctly, but the copper shell should still look proportional and beautiful from the kitchen.

The best custom hood hides the technical planning inside a balanced exterior design.

Care and Maintenance

Clean the copper shell with mild soap, warm water, and a soft cloth. Dry the surface carefully after cleaning to help reduce water spots.

Avoid bleach, ammonia, harsh acids, abrasive pads, aggressive degreasers, and metal polish because these can disturb patina, scratch the surface, or create uneven marks.

Maintain the Insert Separately

The copper shell and the mechanical insert require different care routines.

Maintain filters, lights, controls, blower parts, grease trays, and removable components according to the insert manufacturer’s instructions.

Handmade Variation and Expectations

Custom copper hoods are handmade, so slight variation in patina, hammering, seams, curves, dimensions, and surface movement should be expected.

This variation gives the hood authenticity and prevents it from looking like a stamped appliance cover.

Lifestyle Images as Inspiration

Lifestyle images are helpful for design direction, but the final hood should follow the selected product, size, mount type, patina, texture, insert preparation, and confirmed specifications.

Kitchen lighting, cabinet color, tile, stone, and appliance finishes can change how copper appears after installation.

Ordering a Custom Copper Hood with Insert

A successful order begins with both design and technical information. Decide whether the hood should be wall-mount, island, under-cabinet, hammered, smooth, Spanish Revival, Hacienda, modern, riveted, strapped, natural, antique, or coffee.

Then confirm the insert model, cutout dimensions, duct diameter, discharge location, electrical access, filter access, hood width, hood height, hood depth, ceiling height, and cabinet spacing.

Final Details to Confirm

Before production, confirm hood width, height, depth, mount type, patina, texture, chimney shape, insert brand and model, cutout size, duct location, electrical access, filter removal, service access, and installation clearance.

For custom sizing, insert review, interior preparation, duct planning, or copper hood project questions, use the custom copper contact form before production begins.

Conclusion: Plan the Insert Before the Hood Is Built

A custom copper hood with insert is successful when the handmade shell and mechanical ventilation system are planned together from the beginning.

The most important decisions are insert model, hood size, mount type, duct route, CFM requirements, service access, patina, texture, installation support, and long-term maintenance.

Choosing the Right Copper Hood Insert Setup

The right copper hood insert setup should support the cooking appliance, fit inside the handmade shell, remain serviceable, and coordinate with the kitchen design. To explore more handmade copper hoods, sinks, tubs, tables, mirrors, and custom metalwork, visit MyCustomCopper.
