Hacienda Copper Range Hood with Rivets and Straps Design

The Hacienda Copper Range Hood with Rivets and Straps Design is a custom Hacienda copper range hood handcrafted from solid copper with a smooth brushed surface, curved bell-shaped body, squared crown molding, broad layered apron, vertical straps, and large round rivets. Choose widths of 30, 36, 48, or 60 inches and heights of 24, 36, 48, or 60 inches, plus natural or coffee patina and wall-mount or kitchen-island construction. Its deep aged character creates a substantial Old World focal point while allowing preparation for compatible ventilation equipment. Explore additional custom copper range hood designs for style and sizing comparisons. Configure this handcrafted copper hood for your kitchen project.

Product Summary

• Material: handcrafted solid copper
• Sizes: 30–60"W; 24–60"H
• Patina: natural or coffee
• Mounting: wall or island
• Insert: economy 200 CFM

Mexican Hacienda Profile

The hood combines warm copper, pronounced curves, visible fasteners, and substantial architectural proportions associated with Mexican Hacienda interiors. Its symmetrical design creates rustic strength without requiring embossed imagery, ornate scrollwork, decorative medallions, or excessively elaborate molding.

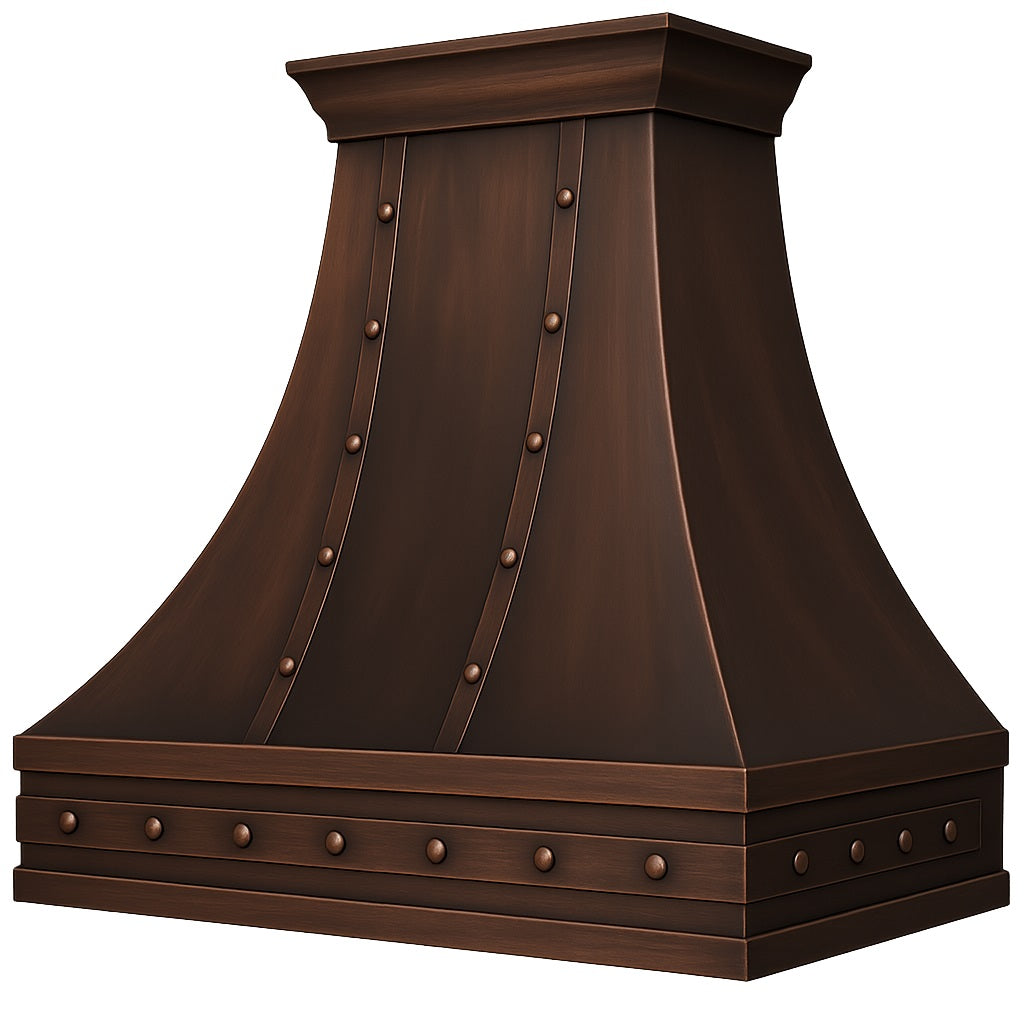

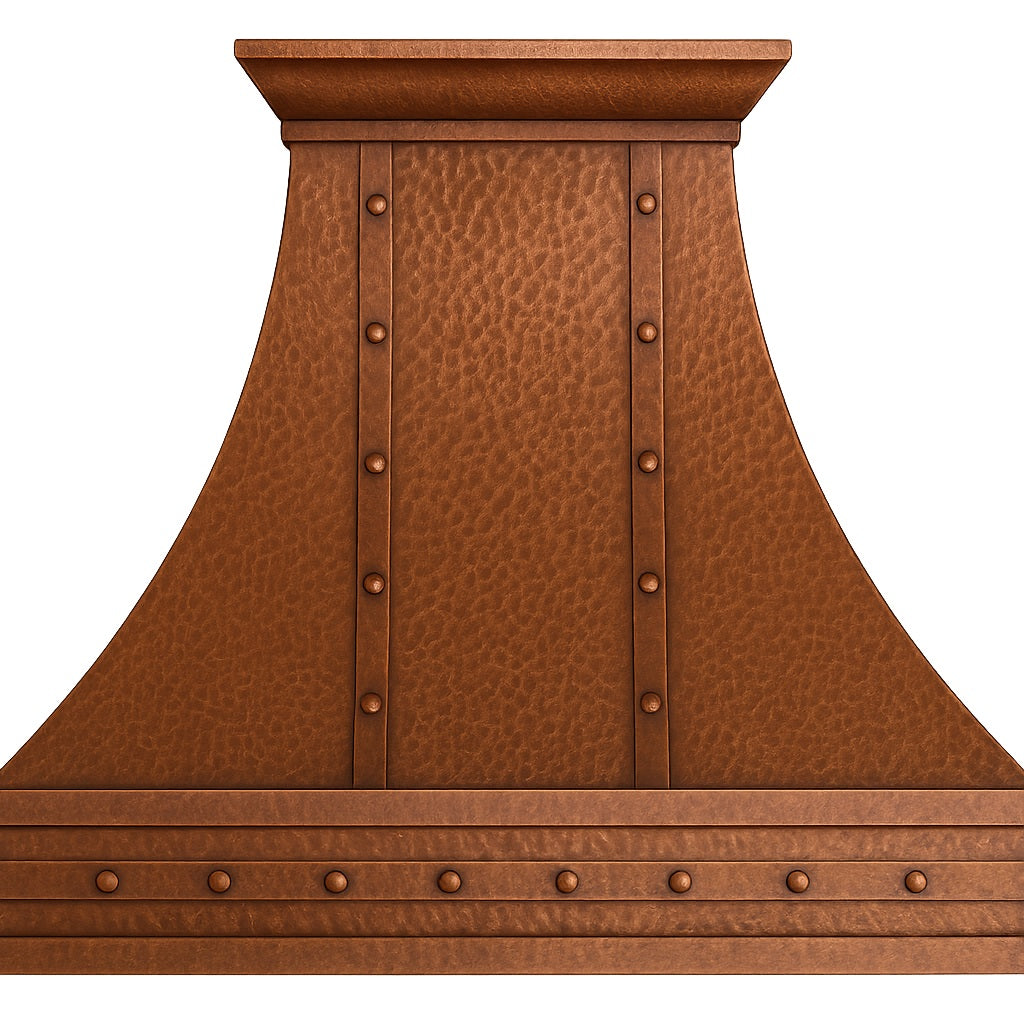

Curved Bell Silhouette

The body rises vertically through the upper section before expanding into a softly curved bell canopy. This controlled flare provides visual volume above the cooking surface while maintaining a balanced transition between the squared crown, broad copper panels, vertical straps, and reinforced apron.

Smooth Brushed Copper

The copper surface is smooth with a subtle brushed effect rather than hammered. Fine directional texture softens reflections, highlights the deep patina, and allows the curved body, seams, straps, rivets, crown, and apron details to remain clearly defined.

Squared Crown Molding

A clean squared crown finishes the top of the hood and creates a structured horizontal boundary above the curved body. Its restrained geometry coordinates naturally with cabinet molding, ceiling trim, exposed beams, shelving, and other architectural elements surrounding the installation.

Vertical Copper Straps

Applied copper straps travel down the front and visible sides, dividing the broad body into balanced sections. Their vertical placement emphasizes height and visually connects the squared crown with the lower apron while reinforcing the hood’s symmetrical handcrafted composition.

Large Round Rivets

Prominent round rivets secure the vertical straps and continue across the apron band. Their regular spacing creates a strong visual rhythm, adds rustic-industrial character, and highlights the artisan construction without relying on separate decorative motifs or applied relief work.

Layered Copper Apron

The broad lower apron anchors the curved body above the cooking surface. Its layered construction adds depth around the ventilation opening, supports the riveted strap pattern, and balances the narrower upper section with a substantial architectural base.

Handcrafted Copper Construction

Each hood is individually cut, shaped, joined, strapped, riveted, and finished rather than stamped as a uniform appliance shell. Made-to-order fabrication allows the dimensions, mounting configuration, crown, curved body, apron, patina, and interior preparation to follow the confirmed kitchen requirements.

Design Features and Planning

The table connects the hood’s main visual features with the installation decisions they influence. Review its proportions, mounting structure, ventilation equipment, service access, patina, duct route, and surrounding materials together before approving production.

Copper Hood Dimensions

Select the hood size according to the cooking-surface width, ceiling height, installation clearance, finished depth, cabinet spacing, chimney route, and ventilation equipment. Wider configurations create greater visual presence and cooking coverage, but every dimension must remain compatible with the available structure and service area.

Proportion and Visual Scale

The squared crown, curved body, vertical straps, large rivets, and layered apron should read as one balanced composition. Review the hood with the range, cabinetry, backsplash, windows, shelving, ceiling beams, lighting fixtures, and surrounding wall area before confirming its final dimensions.

Natural Copper Patina

Natural patina emphasizes copper, amber, bronze, and reddish-brown variation across the smooth panels. This warmer option preserves visible tonal movement while creating contrast around straps, rivets, seams, crown edges, curves, and layered apron details.

Coffee Copper Patina

Coffee patina creates a deeper chocolate-brown appearance with reddish undertones and stronger shadows around the applied metalwork. It coordinates naturally with dark wood cabinetry, aged iron, warm stone, neutral countertops, earth-toned tile, and substantial rustic furnishings.

Living Copper Finish

Copper responds naturally to heat, humidity, sunlight, handling, and regular kitchen use. Its tone may gradually deepen or develop new variation after installation, allowing the brushed surface, straps, rivets, seams, curves, and edges to acquire additional character over time.

Wall or Island Construction

Wall-mount construction coordinates with a backsplash, rear framing, surrounding cabinetry, and a wall or roof duct route. Island construction is finished for viewing from multiple directions and requires suitable ceiling framing, accurate centering, chimney alignment, planned duct placement, and accessible service points.

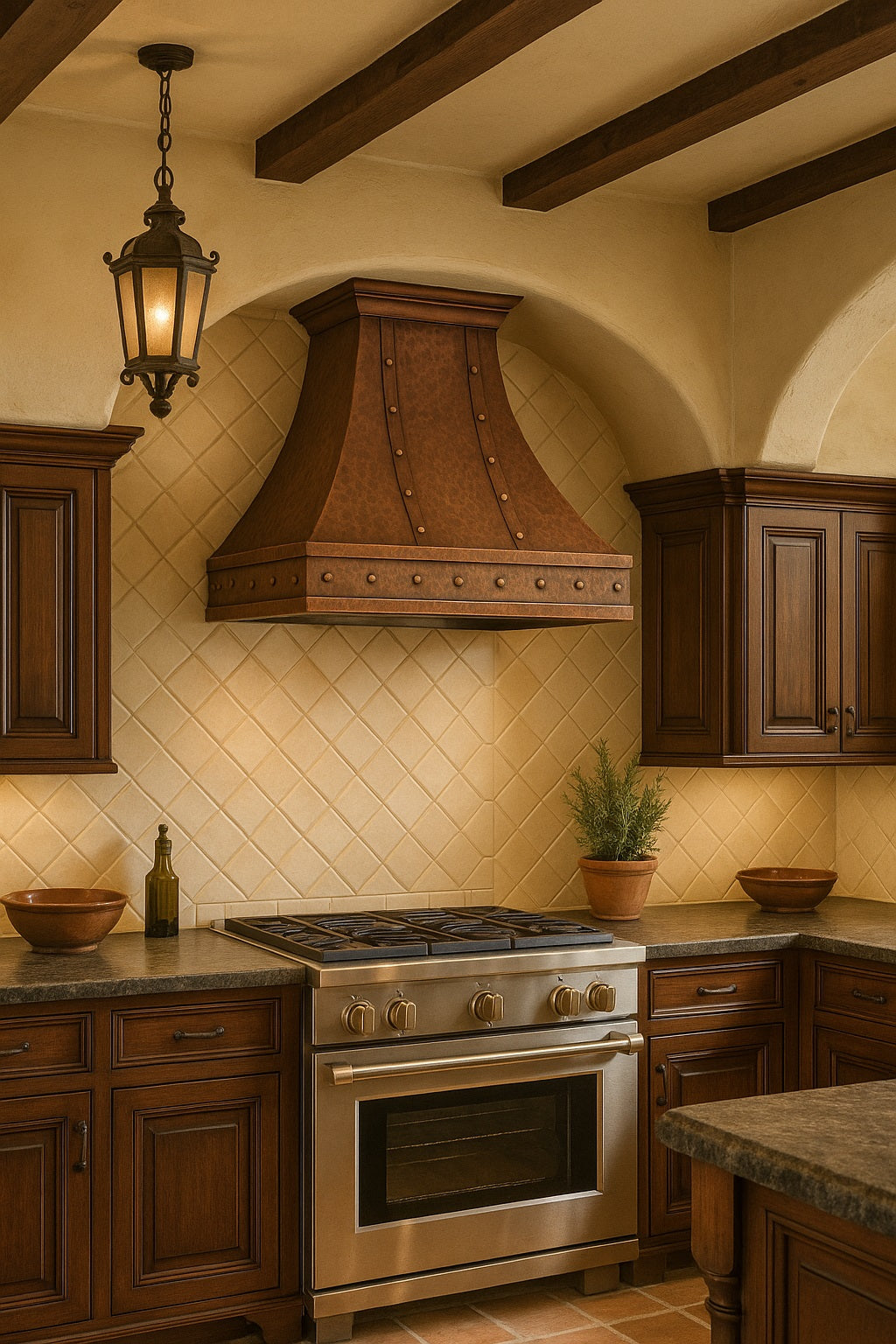

Hacienda Kitchen Styling

The dark copper body, bold rivets, curved silhouette, and vertical straps pair naturally with carved wood cabinetry, handmade tile, plaster walls, stone, terracotta flooring, exposed beams, and wrought-iron lighting. These materials reinforce the hood’s substantial Mexican Hacienda character.

Spanish Revival Kitchens

In Spanish Revival interiors, the hood coordinates with arched openings, dark wood, decorative tile, warm stucco, stone countertops, and iron fixtures. The softly curved body adds volume while the squared crown and layered apron maintain disciplined architectural structure.

Tuscan Design Applications

The deep chocolate and reddish copper tones complement limestone, travertine, terracotta, warm plaster, aged brass, dark cabinetry, and rustic flooring. The brushed texture adds visual depth while the symmetrical straps keep the composition organized.

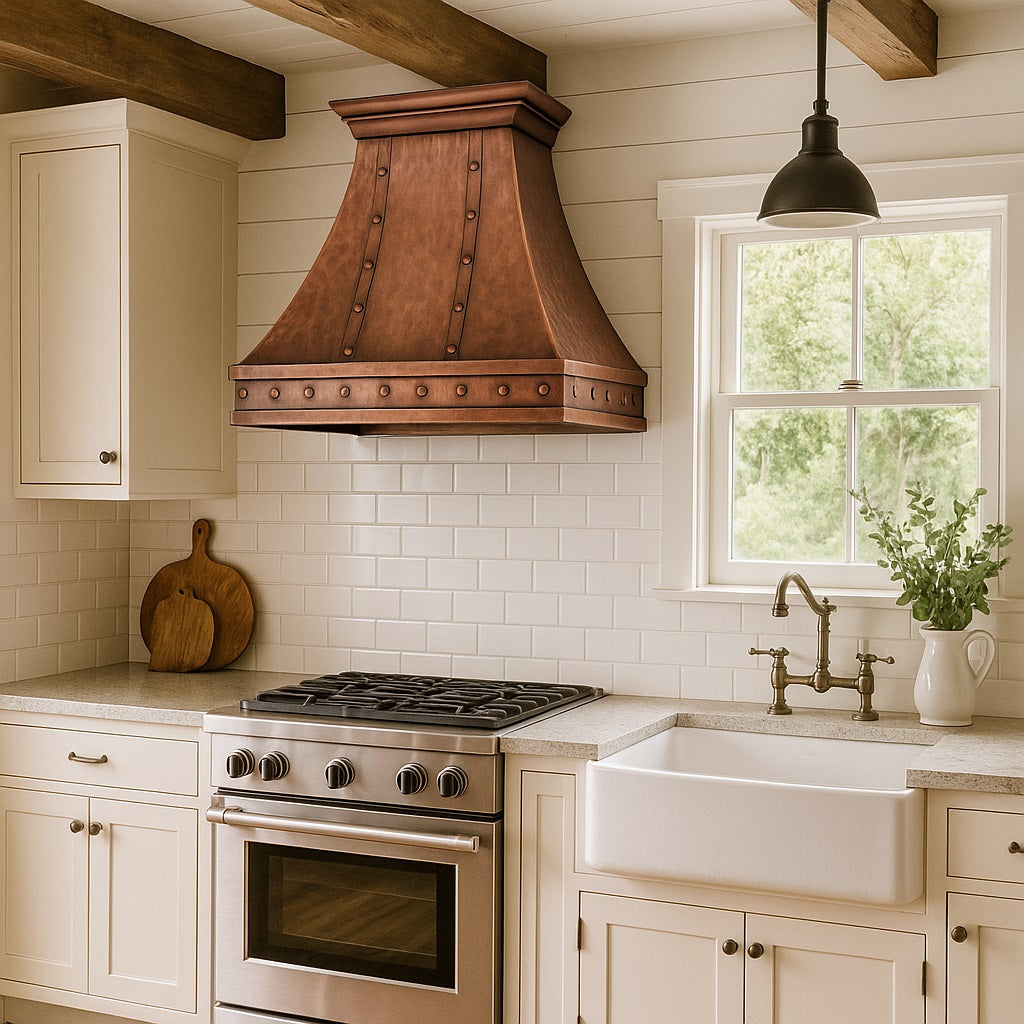

Rustic Industrial Design

Large rivets and visible reinforcing straps introduce an industrial influence without replacing the hood’s traditional copper character. The design coordinates with aged brick, dark steel, reclaimed wood, concrete, stone, open shelving, and substantial pendant or chandelier lighting.

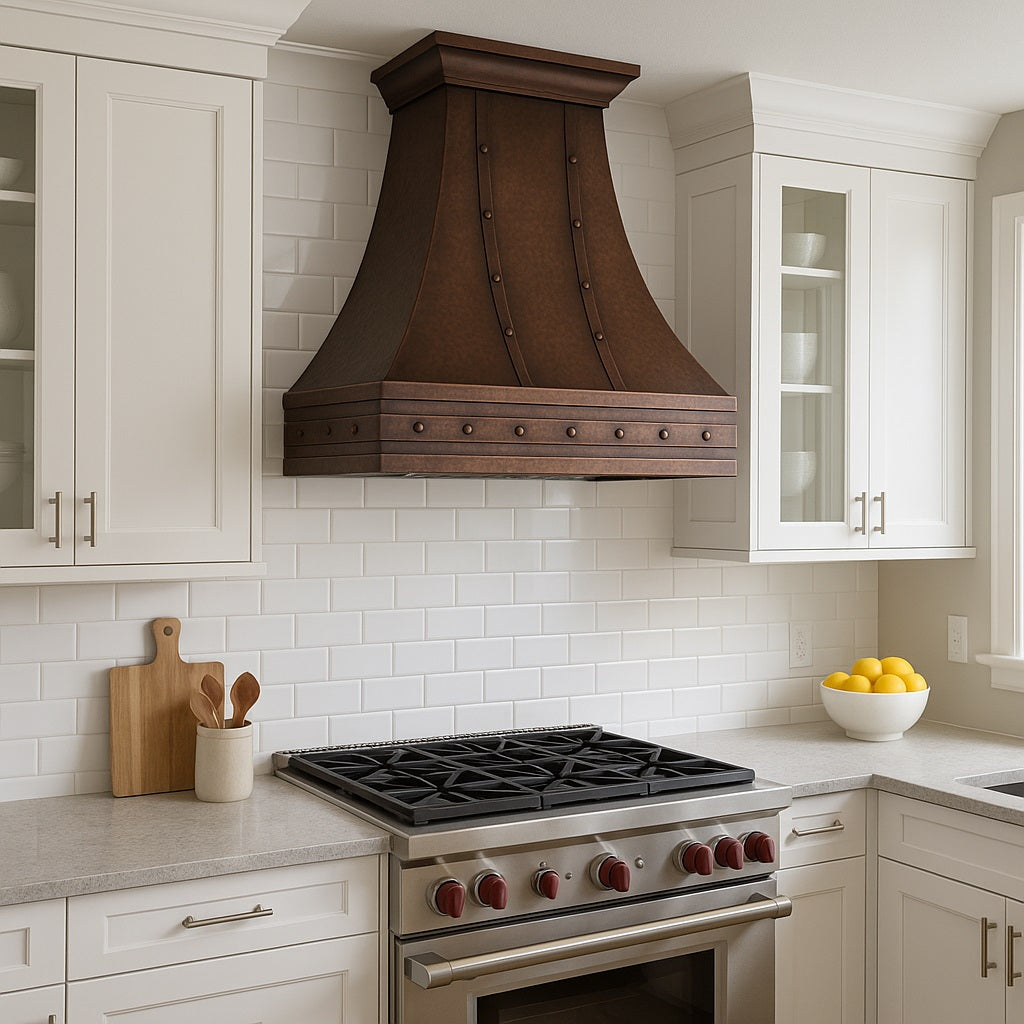

Transitional Kitchens

The balanced symmetry and smooth brushed surface also work with Shaker cabinetry, neutral countertops, simple tile, and restrained millwork. Copper introduces warmth and artisan character without requiring every surrounding element to follow a fully rustic or historically themed design.

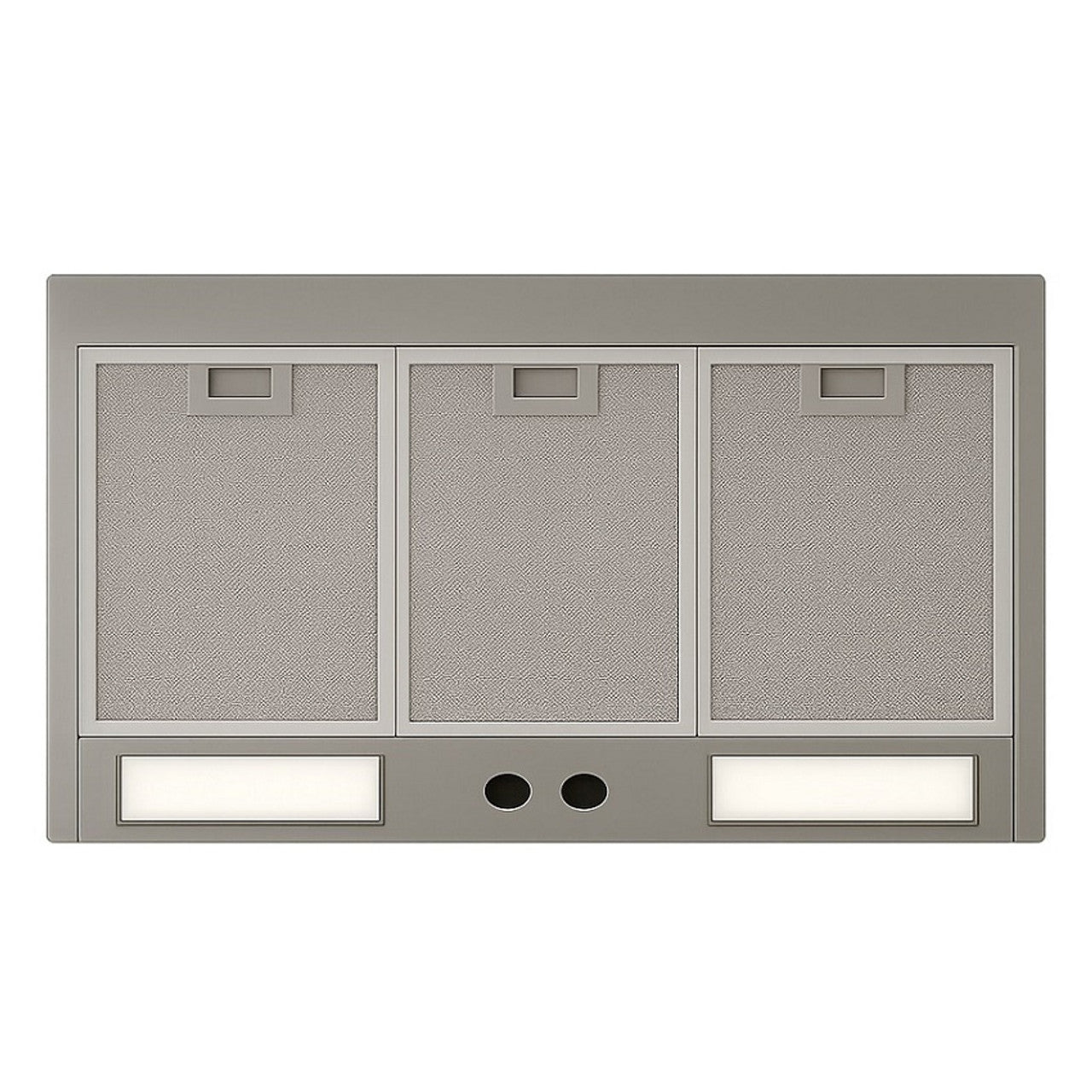

Ventilation and Insert Options

The standard hood includes an economy 200 CFM insert. Stronger inserts are not sold because each kitchen requires specific ventilation equipment. The shell can be prepared for a buyer-supplied internal insert up to 1200 CFM or an external system up to 1500 CFM, with compatible interior preparation included.

Insert Compatibility Requirements

Provide the manufacturer, model, specification sheet, overall dimensions, cutout dimensions, duct diameter, controls, lighting, filter access, electrical access, and service clearances. As a general guideline, the insert should be approximately six inches smaller than the hood in both width and depth, subject to technical review.

Insert Service Access

The ventilation equipment must allow practical access to filters, controls, lighting, electrical connections, fasteners, and removable components. Confirm how the insert will be installed, maintained, and removed before approving the interior preparation because limited access can complicate cleaning, service, and replacement.

Ductwork and Airflow

Actual airflow depends on the insert, blower location, duct diameter, duct length, elbows, termination, filters, makeup-air requirements, and installation quality. A ventilation professional should verify the proposed system against the cooking equipment, manufacturer instructions, building conditions, and applicable local requirements.

Measurements Before Production

Confirm the range width, hood width, hood height, finished depth, mounting configuration, ceiling height, installation clearance, cabinet spacing, backsplash thickness, chimney route, duct centerline, and nearby architectural features. Insert dimensions, controls, filter removal, electrical access, and service clearances must also be verified.

Product Specifications

• Product: Hacienda copper hood
• Material: handcrafted copper
• Surface: smooth brushed effect
• Patina: deep aged character
• Profile: curved bell body
• Base: softly flared canopy
• Crown: squared molding
• Straps: vertical copper bands
• Fasteners: large round rivets
• Apron: broad layered band
• Widths: 30, 36, 48, or 60"
• Heights: 24, 36, 48, or 60"
• Patinas: natural or coffee
• Mounting: wall or island
• Included insert: 200 CFM
• Internal system: up to 1200 CFM
• External system: up to 1500 CFM
• Insert preparation: included
• Production: made to order
• Delivery: about 4 weeks

Ordering and Customization

• Select: wall or island construction
• Choose: natural or coffee patina
• Set: the required hood width
• Set: the required hood height
• Confirm: the finished hood depth
• Choose: the 200 CFM insert
• Provide: your insert specifications
• Verify: duct and chimney placement
• Review: every project measurement

Items Included and Excluded

The listed configuration includes the handcrafted copper shell and compatible 200 CFM insert unless buyer-supplied equipment is approved. Installation labor, structural framing, ductwork, electrical connections, penetrations, makeup-air systems, site modifications, and professional services are excluded unless specifically confirmed.

Professional Installation

Qualified professionals should install the hood using structural support appropriate for the copper shell, ventilation equipment, and site conditions. The installer is responsible for framing, mounting, ductwork, electrical service, clearances, service access, termination, and compliance with equipment instructions and local requirements.

Frequently Asked Questions

Which sizes are available for this Hacienda copper hood?

Choose 30, 36, 48, or 60-inch widths with 24, 36, 48, or 60-inch heights.

Is the copper surface smooth or hand hammered?

This design uses smooth copper with a subtle brushed effect rather than a hammered surface.

How do natural and coffee patinas affect the riveted details?

Natural patina preserves warmer variation, while coffee patina creates deeper contrast around straps, rivets, seams, and apron edges.

Can the strap and rivet arrangement be customized?

Custom arrangements may be reviewed before production when the requested changes remain compatible with the selected size and construction.

Which ventilation systems can this hood accommodate?

It includes a 200 CFM insert and supports approved internal systems to 1200 CFM or external systems to 1500 CFM.

What information is required for my buyer-supplied insert?

Submit the complete specification sheet and allow approximately six inches in width and depth when possible.

Customize Hacienda Hood

Confirm the dimensions, patina, mounting configuration, ventilation equipment, duct route, and installation conditions before production. Order your Hacienda copper range hood after every project specification has been reviewed.

---

Related Resources

• Custom Copper Range Hoods

Copper Care and Maintenance

Clean the copper with warm water, mild soap, and a soft cloth, then dry it carefully. Avoid acidic cleaners, bleach, ammonia, abrasive pads, metal polish, and harsh degreasers that could alter the patina.

Shipping and Returns

Average delivery is four weeks. Unused items may be returned within 30 days; review the shipping policy and refund policy.

Warranty

Manufacturing concerns are reviewed individually with order details and photos. Buyer-supplied inserts and installation are excluded; review the contact information.

---

Disclaimer: Handmade patina, brushing, straps, rivets, and dimensions may vary. Lifestyle images are inspirational only. Product images are copyright protected.
